Powered by a new generation of high-efficiency LED chips, Air Lux MAX delivers up to 95% more brightness than its predecessor, dramatically increasing punch while maintaining beautifully soft, even diffusion. Whether working on large-scale film sets, broadcast environments, or high-end commercial productions, MAX provides the output headroom required for modern cameras and demanding lighting scenarios.
The advanced RGBWW light engine now features CIE XY colour control, giving creators absolute precision in colour reproduction. Dial in exact chromaticity coordinates, match other fixtures seamlessly, or fine-tune white points beyond traditional CCT adjustments. With CRI and TLCI of 95+, Air Lux MAX ensures faithful skin tones and colour accuracy across the spectrum.
Creative flexibility remains at its core. Zonal control enables dynamic gradients, smooth colour transitions, and full pixel mapping capabilities, allowing you to craft immersive lighting effects with ease.

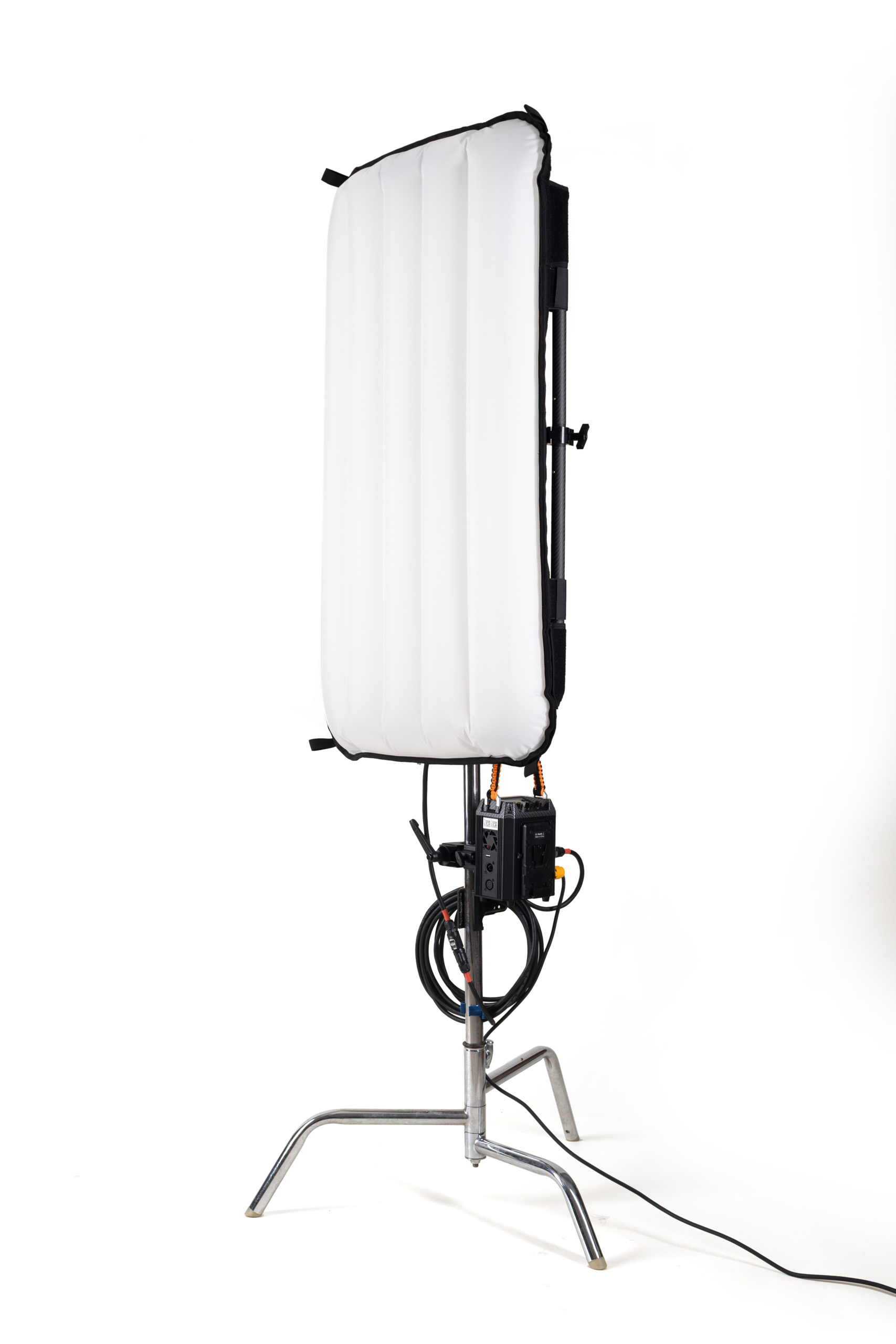

Designed with mobility and speed at its core, the Air Lux MAX tubes retain an ultra-light inflatable construction that makes transport, rigging, and repositioning effortless. The streamlined form factor keeps weight to a minimum without sacrificing durability, making them ideal for dynamic set environments and overhead mounting. With the integrated rapid-inflation pump, deployment is fast and efficient—allowing crews to go from pack-down to full output in minutes. Air Lux MAX tubes are built for agile workflows, delivering maximum performance with minimal setup time.
Control is seamless and versatile via onboard manual controls, wired or wireless DMX (CRMX), or the intuitive mobile app.
Air Lux MAX — higher output, greater precision, stronger build. The next generation of intelligent inflatable lighting.
• Full colour – RGBWW
• High colour rendering
• Improved output
• Deep low-end dimming
• Lightweight light head
• Superior build quality
• Serviceable LED and inflatable part
• On-board USB rechargeable air pump
• Built-in gels and lighting effects
• Wired and wireless DMX, WiFi connectivity, app control
• Multiple DMX zones
• V-lock battery operation
| Light Source | RGBWW |
| Beam Angle | 210° |
| Inflation Time | DC: 50 sec, AC: 1 min |
| CCT | 2,700-10,000K adjustable |
| Colour Rendering | CRI >95, TLCI 95 |
| Wattage | 200W |
| Input Voltage | AC 100-240V, DC 14.8-26V (x1) |
| DMX Control | XLR 5-pin (in/out), Lumen Radio CRMX, Pheon Lux App, WiFi, 2.4G |
| DMX Zones | 8 |
| Dimming | 0-100% |
| Light Head Size | 1200 x 670 x 180 mm |
| Light Head Weight | 1.57 kg |
| Controller Size (L x W x H) | 126 x 152 x 200 mm |
| Controller Weight | 1.67 kg |
Kit Includes:
1 Light head (LED mat and inflatable)
1 Controller
1 Light head mount
1 7m Header cable
1 Power cable
1 Rechargeable mini DC pump
1 AC power air pump
1 Eggcrate
1 Skirt
1 Velcro strap handle
1 USB charging cable
1 Safety bond
1 Kit Bag
| 2700K | 3200K | 4300K | 5600K | 6000K | |
|---|---|---|---|---|---|
| 1 m | 2630 lux | 2710 lux | 2900 lux | 3080 lux | 3020 lux |
| 3 m | 453 lux | 465 lux | 498 lux | 531 lux | 518 lux |
| 5 m | 220 lux | 227 lux | 243 lux | 259 lux | 253 lux |
