900W of LED illumination in a tiny 12″ x 12″ form factor
Interchangeable pixel lenses (12°/18°/30°/50°)
Wireless LumenRadio
2000-10000K, Full Color
This product is supplied exclusively through our authorised dealers.
For pricing, demonstrations or technical advice, please contact Cirro Lite or your preferred reseller.

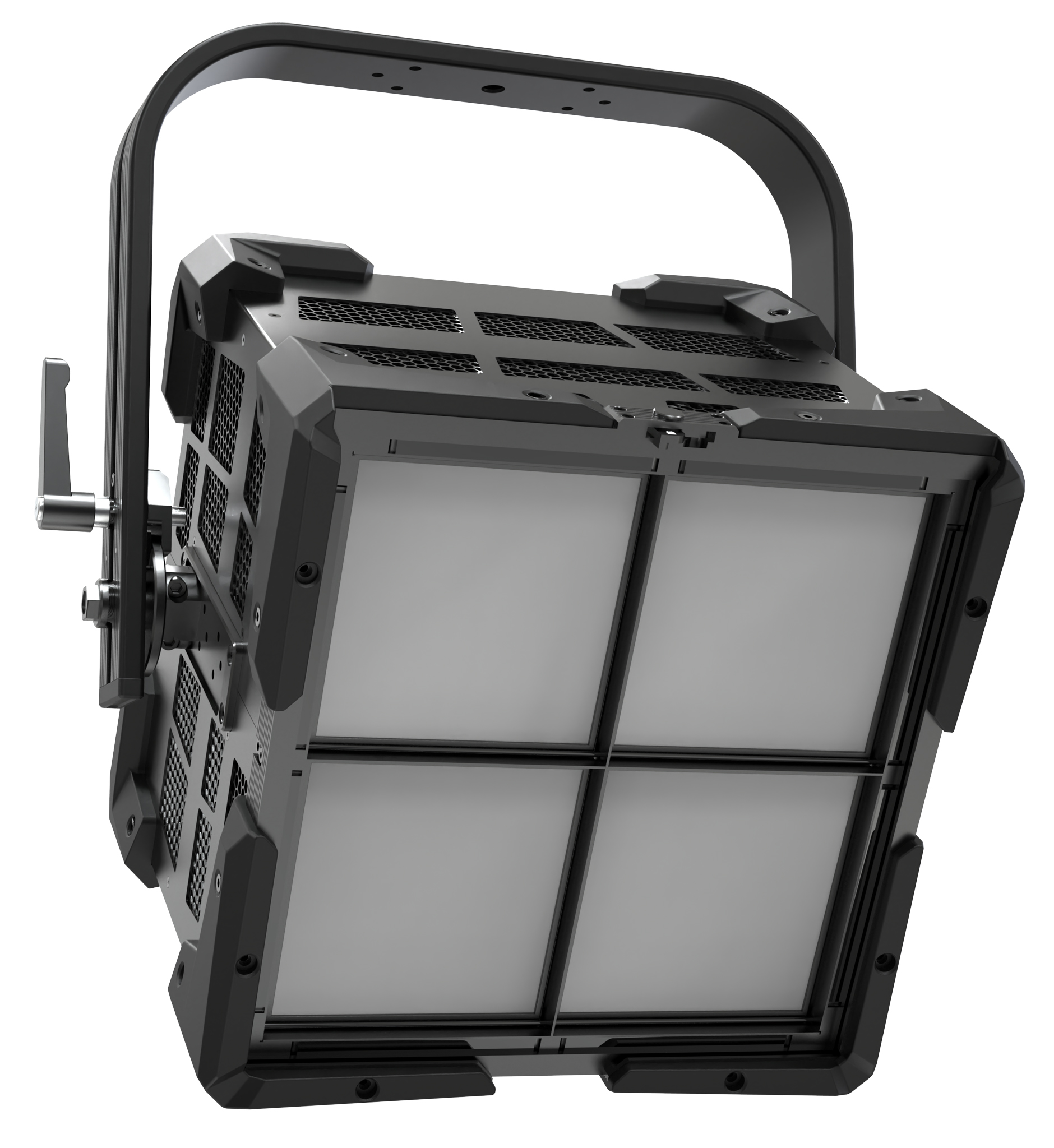

The K10 COLOR is a super-bright punch light that emits 900W of LED illumination in a tiny 12″ x 12″ form factor. This fixture uses the latest iteration of Fiilex’s Dense Matrix LED technology to deliver color quality and optical versatility that are superior to previous generations of LED punch lights. Individually swappable lenses and pixel control allow for incredibly high levels of customization and control over the light output. With its smooth dimming from 0-100%, no flicker, high CRI, and CRMX wireless built in, the K10 COLOR excels in any production setting and can be used on a floor stand, rigged into a grid, or hung side by side on a rail.
• High-CRI white light output (2000-10000K)
• 8 and 16-bit color modes: CCTRGBW, CCTHSI, CIExy, etc.
• Removable diffuser / honeycomb accessories
• Interchangeable pixel lenses (12°/18°/30°/50°)
• DMX-controllable fan modes: OFF / SILENT / AUTO / FULL
• IP-X5 Rating (water resistant)
| Beam Angle | 12° with lens (18°/30°/50° with optional lens accessories) |
| CCT Range | 2000-10000K continuous tuning + magenta/green shift |
| CRI / TLCI | 95 / 90 typical |
| Control Modes | CCT, HSI, RGBW, GEL, CCTRGBW, CCTHSI, CIExy, ICTHS, and more |
| Dimming | 100 – 0% flicker free |
| Dimming Modes / Curve | Smooth, Sharp / Linear, Gamma |
| Light Engine | DiCon Dense Matrix LED |
| Power Consumption | 900W max AC |
| BTUs/hour | 3071 (BTUs/hour) max |
| AC Input | 100 – 240V AC, 50~60Hz |
| DMX/RDM Interface | XLR-5 |
| Wireless Control | Integrated LumenRadio CRMX TimoTwo |
| Ethernet | sACN, ArtNet (via etherCON) |
| USB Power Output | 5V/1A (via USB-A) |
| USB-C Interface | FW Update / Remote |
| Weight | 34.1lbs / 15.5kg (With Yoke) |
| Size (L x W x H) | 23.0" x 20.3" x 12.6" / 58.3cm x 51.6cm x 31.9cm (With Yoke) |
| 13.6" x 14.4" x 12.6" / 34.5cm x 36.7cm x 31.9cm (Light Head Only) | |
| Mount Type | Combo (baby stud female / junior stud male) |
| IP Rating | IP-X5 (water-resistant) |
| Thermal Design | Controllable fan (OFF / SILENT / AUTO / FULL) |
| Operating Temperature | 0-40°C / 32-104°F |
| Approved Regulatory Standards | cETLus, FCC, CE, UKCA, RoHS, WEEE |
• Light Head FLXK10CLR-HEAD
• Power cable FLXK10-ACJ18-TRUE1
• Lens Pack FLXK10CLR-FRNL12
(Pack of 4)
