Super-bright punch light that emits 3600W of LED illumination
Interchangeable pixel lenses (12°/18°/30°/50°)
Wireless LumenRadio
2000-10000K, Full Color
This product is supplied exclusively through our authorised dealers.
For pricing, demonstrations or technical advice, please contact Cirro Lite or your preferred reseller.

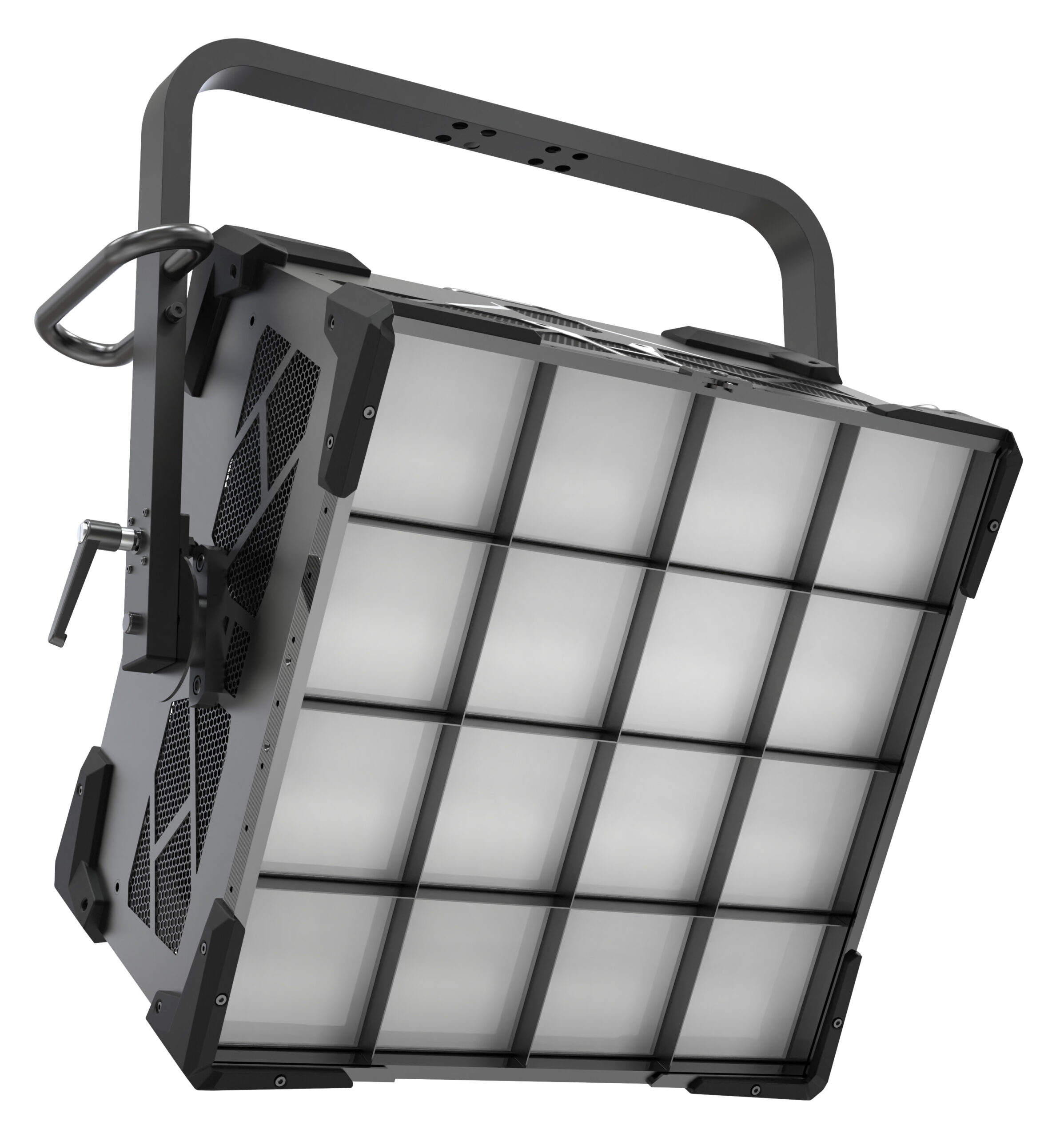

The K40 COLOR is a super-bright punch light that emits 3600W of LED illumination. This fixture uses the latest iteration of Fiilex’s Dense Matrix LED technology to deliver color quality and optical versatility that are superior to previous generations of LED punch lights. Individually swappable lenses and pixel control allow for incredibly high levels of customization and control over the light output. With its smooth dimming from 0-100%, no flicker, high CRI, and CRMX wireless built in, the K40 COLOR excels in any production setting and can be used on a floor stand, rigged into a grid, or hung from a Condor.
• Interchangeable pixel lenses (12°/18°/30°/50°)
• High-CRI white light output (2000-10000K)
• 8 and 16-bit color modes: CCTRGBW, CCTHSI, CIExy, etc.
• Removable diffusion / honeycomb accessories
• Compactable lightweight- 107lbs
• Smooth and Sharp dimming modes
• DMX-controllable fan modes: OFF / SILENT / AUTO / FULL
• IP-25 Rating (water resistant)
| Beam Angle | 12° with lens (18°/30°/50° with optional lens accessories) |
| CCT Range | 2000-10000K continuous tuning + magenta/green shift |
| CRI / TLCI | 95 / 90 typical |
| Control Modes | CCT, HSI, RGBW, GEL, CCTRGBW, CCTHSI, CIExy, ICTHS, and more |
| Dimming | 100 – 0% flicker free |
| Dimming Modes / Curve | Smooth, Sharp / Linear, Gamma |
| Light Engine | DiCon Dense Matrix LED |
| Power Consumption | Single AC Input 1500W / Dual AC Input 3600W |
| BTUs/hour | 12283 (BTUs/hour) max |
| AC Input | 100 – 240V AC, 18A Max Each |
| DMX/RDM Port | XLR-5 |
| Wireless Control | Integrated LumenRadio CRMX TimoTwo |
| Ethernet | sACN, ArtNet (via etherCON) |
| USB Power Output | 5V/1A (via USB-A) |
| USB-C Interface | FW Update / Remote |
| Weight | 107lbs / 48.5kg (With Yoke) |
| Size (L x W x H) | 35.1" x 37.2" x 14.3" / 89.2cm x 94.6cm x 36.2cm (With Yoke) |
| 24.4" x 24.4" x 14.3" / 62.0cm x 62.0cm x 36.2cm (Light Head Only) | |
| Mount Type | Combo (baby stud female / junior stud male) / Dual Truss Clamp Optional |
| IP Rating | IP-X5 (water-resistant) |
| Thermal Design | Controllable fan (OFF / SILENT / AUTO / FULL) |
| Operating Temperature | 0-40°C / 32-104°F |
| Approved Regulatory Standards | FCC, CE, UKCA, RoHS, WEEE |
• Light Head FLXK40-HEAD
• (2) Power cable FLXK40-ACJ18-TRUE1
• Lens pack FLXK40CLR-FRNL12
(Pack of 16)
• Flight case FLXK40CLR-E1-CASE
