Brighter than 1K Tungsten
12°-62° spot/flood
Battery compatible
This product is supplied exclusively through our authorised dealers.
For pricing, demonstrations or technical advice, please contact Cirro Lite or your preferred reseller.

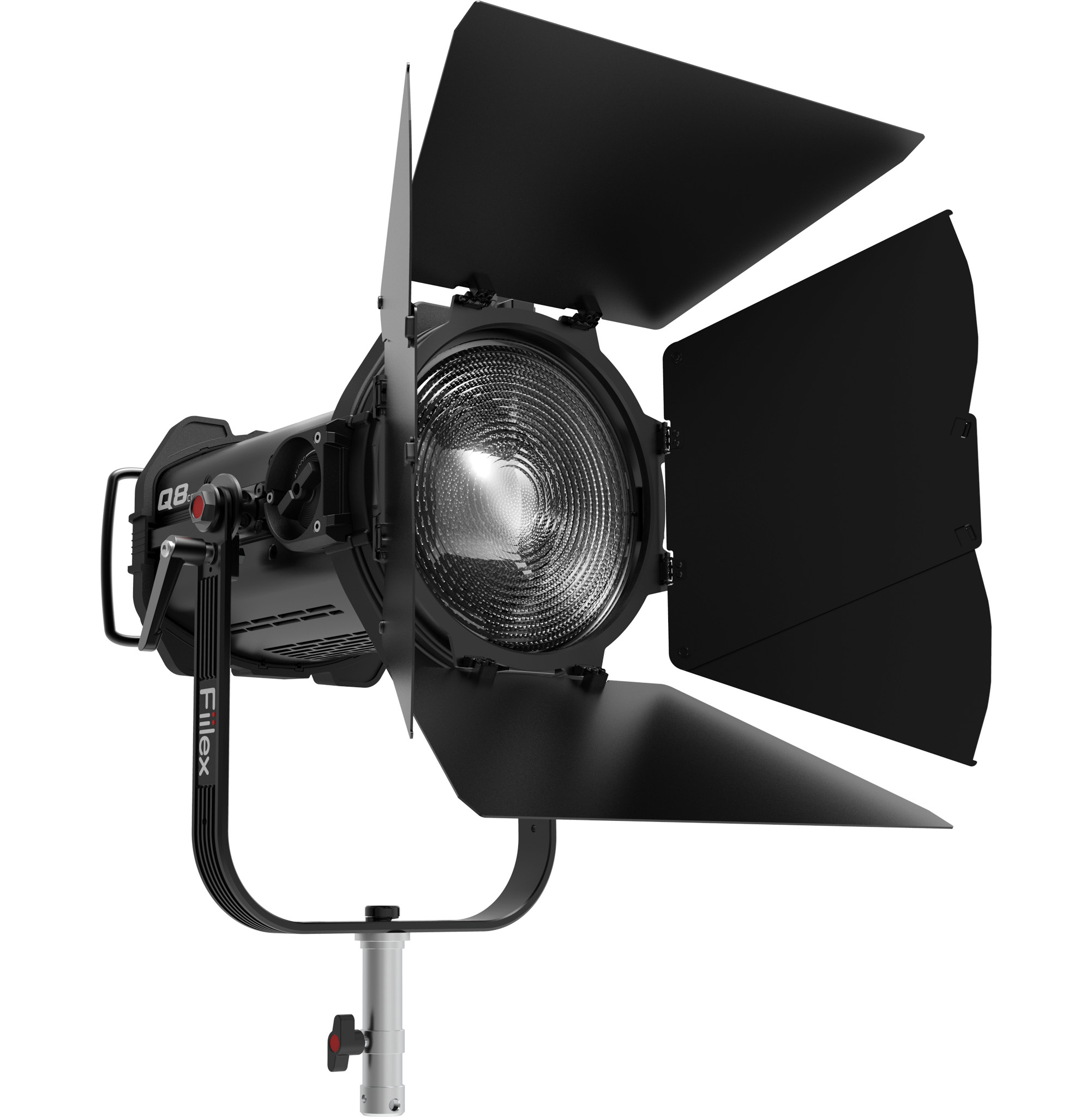

The Q8 COLOR is a 320W 8” LED Fresnel that generates high-quality full-color light output. This fixture uses the latest iteration of Fiilex’s Dense Matrix LED technology to deliver color fidelity and optical versatility that are superior to previous generations of LED fresnels. With an extremely wide spot/flood range, smooth dimming to 0%, no flicker, and high CRI, the Q8 COLOR combines the extensive feature set of top-tier RGBW LEDs with the performance of a tungsten fresnel.
• High-CRI white light output (2000 – 10000K)
• 8 and 16-bit color modes: CCTRGBW, CCTHSI, CIExy, etc.
• 12° – 62° spot/flood range with no optical aberrations
• 8-Leaf barndoor cuts clean with no color splitting
• Smooth and Sharp dimming modes
• DMX-controllable fan modes: Full, Variable, Silent, Off
• IP-X5 Rating (water-resistant)
• Wireless control via integrated LumenRadio
| Fresnel Diameter | 8" |
| Beam Angle | 12°-62° |
| CCT Range | 2000-10000K continuous tuning + magenta/green shift |
| CRI / TLCI | 95 / 90 typical |
| Control Modes | CCT, HSI, RGBW, GEL, CCTRGBW, CCTHSI, CIExy, ICTHS, and more |
| Dimming | 100 – 0% flicker free |
| Dimming Modes / Curve | Smooth, Sharp / Linear, Gamma |
| Light Engine | DiCon Dense Matrix LED |
| Power Consumption | 320W max AC | 300W max DC |
| BTUs/hour | 1091 (BTUs/hour) max |
| DC Input | 48V DC (via XLR-3) |
| AC Input | 100 – 240V AC, 50 ~ 60Hz (via powerCON TRUE1) |
| DMX/RDM Port | XLR-5 |
| Wireless Control | Integrated LumenRadio CRMX TimoTwo |
| Ethernet | sACN, ArtNet (via RJ45) |
| USB Power Output | 5V/1A (via USB-A) |
| Weight | Fixture: 17 lbs / 7.7 kg (includes yoke) | Power adapter: 4.8 lbs / 2.2 kg |
| Size (L x W x H) | 13.6” x 12.7” x 19.6” / 34.7cm x 32.3cm x 49.9cm |
| Mount Type | Combo (baby stud female / junior stud male) |
| IP Rating | IP-X5 (water-resistant) |
| Thermal Design | Controllable fan |
| Operating Temperature | 0-40ºC / 32-104ºF |
| Approved Regulatory Standards | cETLus, FCC, CE, UKCA, RoHS, WEEE |
• Light Head FLXQ8CLRLR-HEAD
• 8 inch Barndoor 8 Leaf FLXQ8CLR-BD8
• 320W V-Mount PSU FLXPSU-320V
• Power cable FLXPSU-ACJ6-TRUE1
