PATENT PENDING
Engineered for integrated DMX and CRMX control — built for studio and location production.

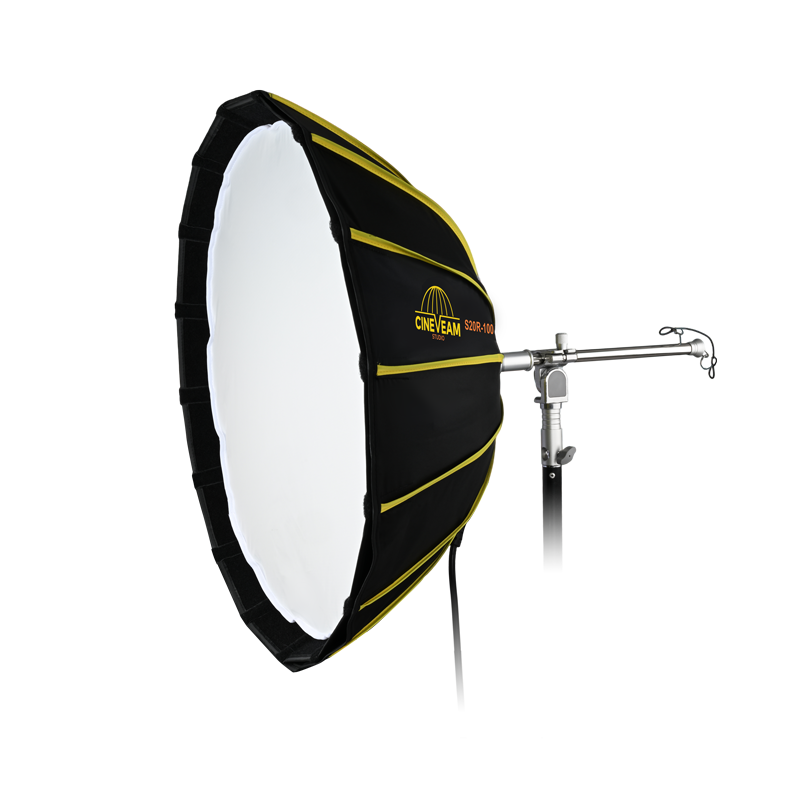

The S20R-100 features a compact 2’ round (60 cm) form factor designed for controlled, intimate softness with precise placement flexibility. Ideal as a portrait key, accent source or compact overhead beauty light, it delivers refined wrap while maintaining contrast and separation.
The circular geometry produces flattering facial illumination and a clean, natural round catchlight — enhancing dimensionality without overpowering the scene.
Designed for studio, broadcast and commercial environments, the S20R-100 combines premium light quality with full professional system integration.
The compact circular design allows precise positioning in tighter environments while maintaining elegant wrap and controlled falloff.
Umbrella-style Quick Deployment System
The CineVeam quick-deploy system opens in seconds using a central pull-and-lock rod built directly into the fixture. Simply hold the center locking collar and pull the rear deployment rod to open the light, just like an umbrella in reverse. Once locked, the exposed 5/8″ rear rod provides approximately 14″ of built-in mounting length for grip heads, clamps and rigging.
For tighter overhead or studio setups, the rear rod can be removed at the threaded joint located 7 cm behind the locking collar. That built-in 7 cm section is designed to fit directly into a grip head or the included stand adapter, reducing the overall depth of the fixture while maintaining safe mounting.
The removable rear section may also be replaced with an optional 1 m extension rod for boom mounting or greater stand clearance. Both ends include captive safety pins, and the rear end cap incorporates a hanging loop for storage and safety cable attachment.
Beauty-grade soft light. Studio-grade control.
• Cinematic, wraparound softness
• Industry-standard 2’ round (0.60 m) format
• Integrated DMX for console control
• Built-in CRMX wireless operation
• IP-rated ballast for enhanced reliability
• Clean, neutral white light with natural skin tone reproduction
• Simple/fast set up (deploys in 3 seconds)
• Ultra-lightweight build (correct positioning is optimised)
• Packs efficiently for travel and storage
• CRI 96+ high colour rendering
• Passive cooling – no unwanted noise
• Fibreglass umbrella frame – lightweight and reliable
• Smart lighting control
| Model | CV-S20R-100 |
|---|---|
| Power | 100W |
| CRI | ≥96 |
| TLCI | ≥96 |
| CCT | 2700K-6500K |
| Luminous Flux | 10,000 LM |
| Power Adjustment | 0.1-100% |
| FX | 6 types |
| Remote Control | App (Bluetooth), DMX, CRMX |
| Remote Distance (Bluetooth) | ≤30M |
| Cooling Type | Light: Passive Cooling |
| Ballast: Silent Fan Cooling | |
| Ballast Voltage | Input: AC 100V-240V / DC 14.8V x 2 |
| Output: DC 46V-56V | |
| Umbrella Front Diameter | 2 feet / 60 cm |
| Umbrella Depth | 28 cm |
| Folding Length | 67 cm |
Kit Includes:
1 Light head
1 Controller
1 Standard diffuser
1 V-clamp for the controller
1 Grid
1 Extension cable 3 m
1 Mains power cord 3 m
1 Stand mount
1 Extension rod
1 Kit bag
