PATENT PENDING
Engineered for integrated DMX and CRMX control — built for studio and location production.

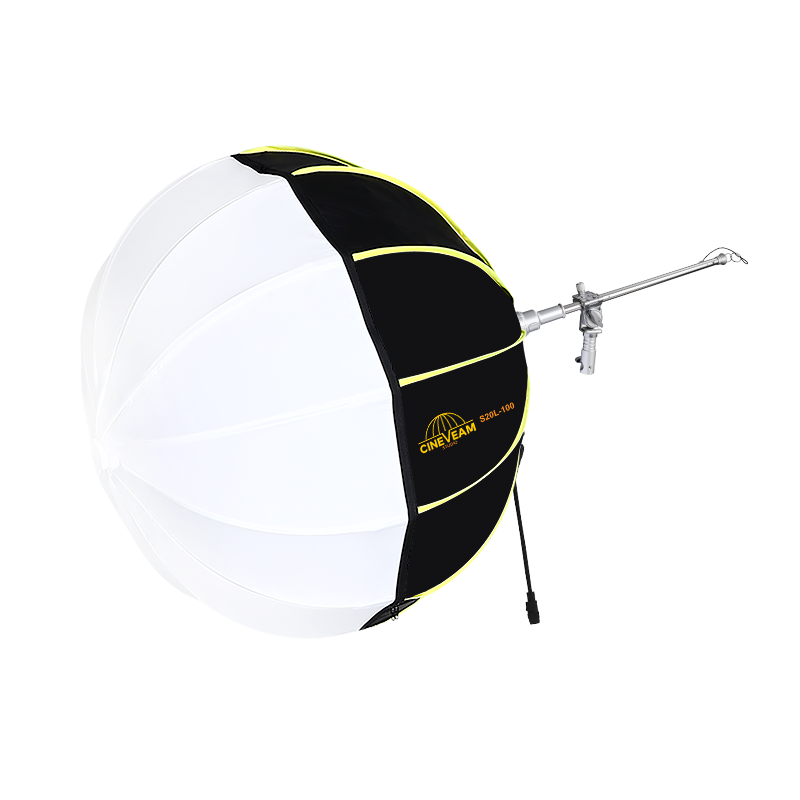

The S20L-100 features a compact 60 cm lantern form factor designed for controlled overhead softness in tighter environments. Ideal for smaller table setups, intimate scenes and precise ambient lighting, it delivers flattering, even illumination while maintaining contrast and separation.
Its circular lantern geometry provides balanced wrap across multiple subjects, with a scale that allows discreet placement and refined control.
Designed for studio, broadcast and commercial environments, the S20L-100 combines premium light quality with full professional system integration.
The compact lantern design creates elegant overhead diffusion suited to intimate table scenes and controlled ambient fill. When skirted, the output becomes sculpted and directional — preserving contrast while containing spill.
Umbrella-style Quick Deployment System
The CineVeam quick-deploy system opens in seconds using a central pull-and-lock rod built directly into the fixture. Simply hold the center locking collar and pull the rear deployment rod to open the light, just like an umbrella in reverse. Once locked, the exposed 5/8″ rear rod provides approximately 14″ of built-in mounting length for grip heads, clamps and rigging.
For tighter overhead or studio setups, the rear rod can be removed at the threaded joint located 7 cm behind the locking collar. That built-in 7 cm section is designed to fit directly into a grip head or the included stand adapter, reducing the overall depth of the fixture while maintaining safe mounting.
The removable rear section may also be replaced with an optional 1 m extension rod for boom mounting or greater stand clearance. Both ends include captive safety pins, and the rear end cap incorporates a hanging loop for storage and safety cable attachment.
Beauty-grade soft light. Studio-grade control.
• Cinematic, wraparound softness
• Industry-standard 60 cm lantern format
• Integrated DMX for console control
• Built-in CRMX wireless operation
• IP-rated ballast for enhanced reliability
• Clean, neutral white light with natural skin tone reproduction
• Simple/fast set up (deploys in 3 seconds)
• Ultra-lightweight build (correct positioning is optimised)
• Packs efficiently for travel and storage
• CRI 96+ high colour rendering
• Passive cooling – no unwanted noise
• Fibreglass umbrella frame – lightweight and reliable
• Smart lighting control
| Model | CV-S20L-100 |
|---|---|
| Power | 100W |
| CRI | ≥96 |
| TLCI | ≥96 |
| CCT | 2700K-6500K |
| Luminous Flux | 10,000 LM |
| Power Adjustment | 0.1-100% |
| FX | 6 types |
| Remote Control | App (Bluetooth), DMX, CRMX |
| Remote Distance (Bluetooth) | ≤30M |
| Cooling Type | Light: Passive Cooling |
| Ballast: Silent Fan Cooling | |
| Ballast Voltage | Input: AC 100V-240V / DC 14.8V x 2 |
| Output: DC 46V-56V | |
| Umbrella Front Diameter | 2 feet / 60 cm |
| Umbrella Depth | 55 cm |
| Folding Length | 110 cm |
Kit Includes:
1 Light head
1 Controller
1 Skirt (comes in 4 pieces)
1 V-clamp for the controller
1 Extension cable 3 m
1 Mains power cord 3 m
1 Stand mount
1 Extension rod
1 Kit bag
